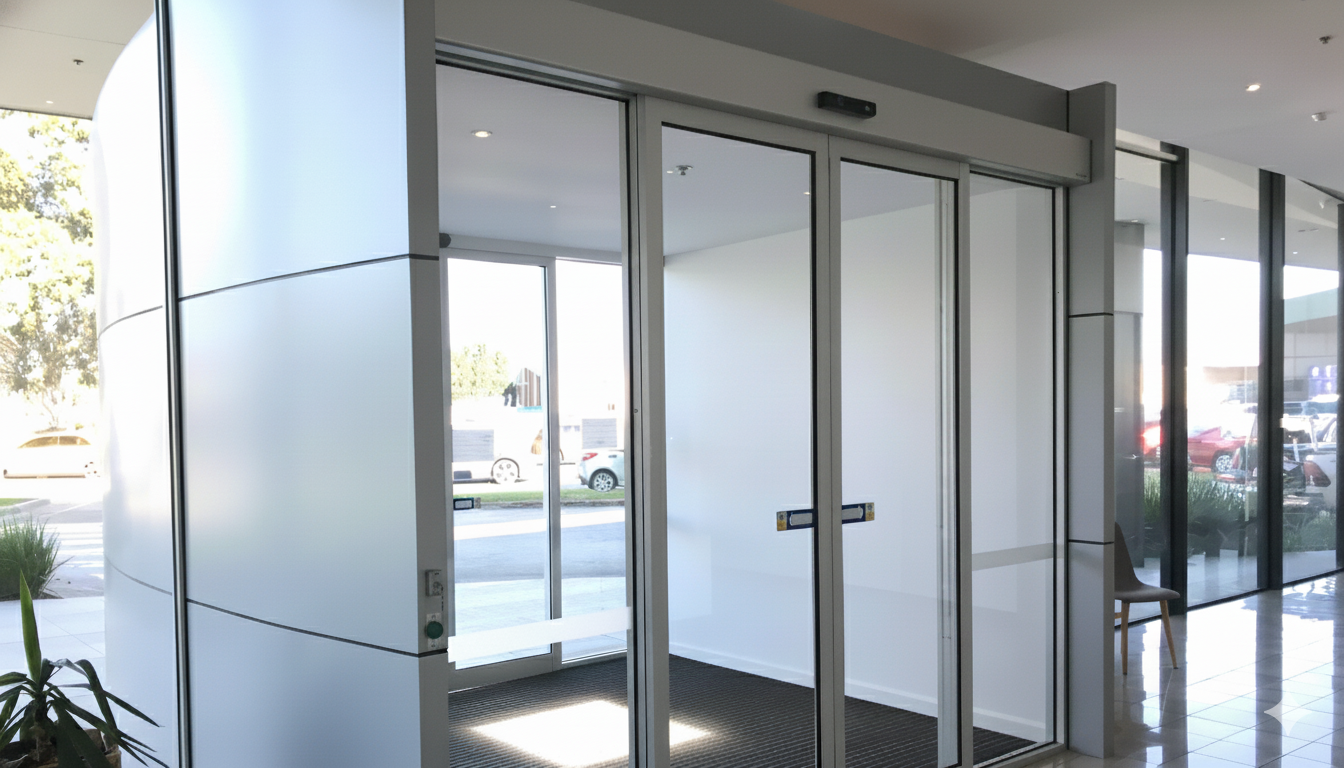

SZ200 – Economical, Compact, and Compliant Sliding Door Operator
The SZ200 is a cost-effective and compact automatic sliding door operator designed to meet the needs of a wide range of commercial and public applications. With its low-maintenance design and high-performance drive system, the SZ200 offers reliable and quiet operation while complying with all relevant safety and building standards.
Compact. Smooth. Quiet.
Key Features
- Compact Drive System: Slim profile (205 mm height x 120 mm depth) for discreet integration into architectural designs.
- Heavy-Duty Motor: Brushless DC motor rated for continuous 24-hour operation with low power consumption (80W).
- Door Capacity: Supports up to 140 kg per leaf or 250 kg combined for bi-parting doors.
- Smooth & Quiet Operation: Reinforced belt drive and replaceable nylon track ensure long-lasting, low-noise performance.
- Advanced Safety: Radar and infrared sensors with automatic reversing upon obstruction.
- Failsafe Battery Backup: Ensures continued operation during power failure or fire alarm, compliant with NCC/BCA regulation D2.19 and AS5007.
- Smart Control System: Self-learning microprocessor with adjustable speed, hold-open time, retry logic, and integration with security systems (FIP, BMS, fire alarm).
- Flexible Mounting Options: Compatible with aluminium framed, frameless glass, and timber doors.
- Security Features: Optional electric locking (fail-safe or fail-secure), SK2 key switch, card reader or swipe access.
Typical applications
- Hospitals and healthcare facilities
- Retail and shopping centres
- Airports and transport terminals
- Office buildings and public infrastructure
